Performing Arts Technical Facilities for Sheffield Hallam University
Project brief
A.C. Special Projects have provided the complete design, supply and installation of all aspects of cutting-edge lighting & audio systems for new performance spaces at Sheffield Hallam University.
Working with empty shells, room truss and cabling infrastructures were created to accommodate cost-effective yet high quality systems featuring popular industry brands.

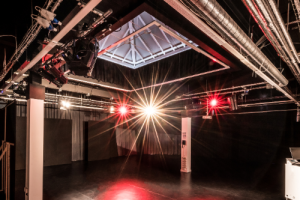

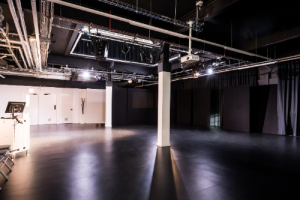

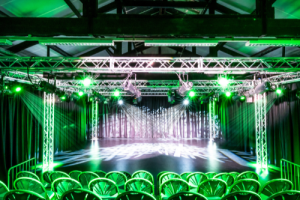

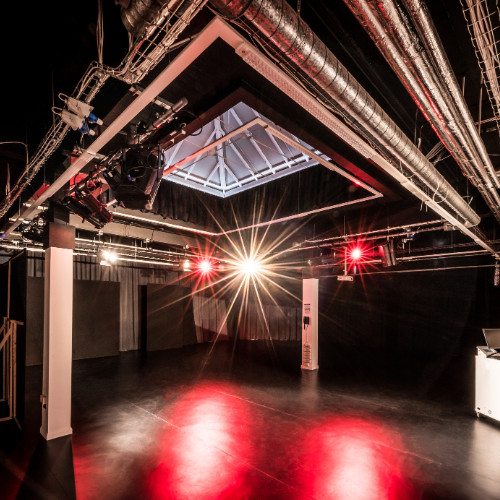

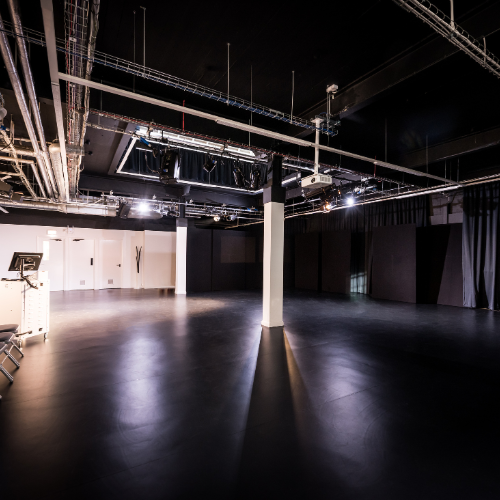

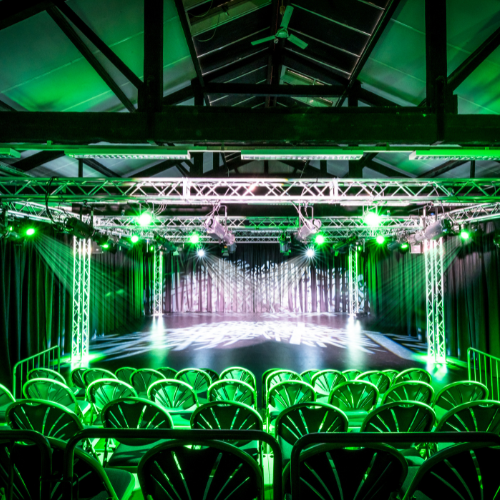

For the smaller upper studio, a U-shaped aluminium lighting grid features state of the art Chroma-Q full colour LED PARs and ProLights white LED Spot Profiles, along with conventional luminaires. For the larger lower performance space’s more ambitious productions the rig’s additional fixtures include various ProLights LED full colour Profiles, moving spots and wash lights with pixel control.

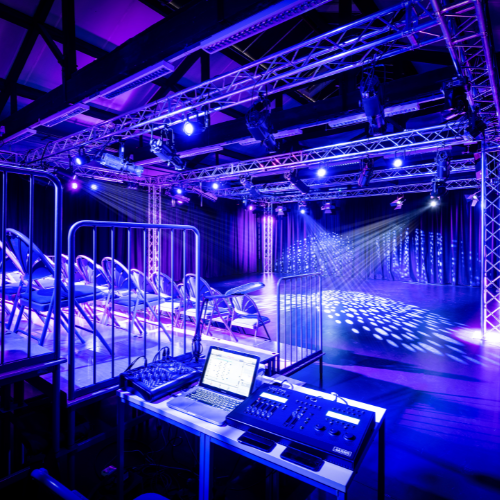

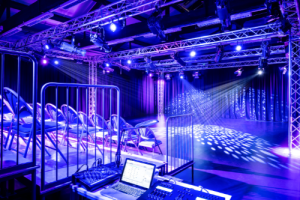

In each space, control is provided by Jands Vista consoles connected to the lighting rig via LumenRadio wireless networking, and set up with pre-set custom ‘looks’.
Each space also features compact yet high quality D.A.D Touring Power Series 208A active speakers.
Photos © www.i101digital.co.uk / A.C. Special Projects.
Working with empty shells, room truss and cabling infrastructures were created to accommodate cost-effective yet high quality systems featuring popular industry brands.
For the smaller upper studio, a U-shaped aluminium lighting grid features state of the art Chroma-Q full colour LED PARs and ProLights white LED Spot Profiles, along with conventional luminaires. For the larger lower performance space’s more ambitious productions the rig’s additional fixtures include various ProLights LED full colour Profiles, moving spots and wash lights with pixel control.
In each space, control is provided by Jands Vista consoles connected to the lighting rig via LumenRadio wireless networking, and set up with pre-set custom ‘looks’.
Each space also features compact yet high quality D.A.D Touring Power Series 208A active speakers.
Photos © www.i101digital.co.uk / A.C. Special Projects.
Equipment
- Both Performance Spaces:
- Chroma-Q Color One 100X
- ProLights Eclipse Junior
- Spotlight Area 12 Fresnels
- ETC Source Four Zooms
- ETC Smart Module 2
- Chroma-Q 4Play DMX Distro
- LumenRadio Wireless DMX
- Jands Vista M1 / S1 Control Console
- D.A.D Touring 208A Active Speakers
- U-Shaped Aluminium Lighting Grid (Upper Space)
- Custom Ground Mount Litec Truss (Lower Space)
- Lower Performance Space – Additional Equipment:
- ProLights Eclipse FC Profiles
- ProLights Jet Spot 3
- ProLights Diamond 7
- D.A.D 15″ Subwoofers
- Allen & Heath Zed 10
- Doughty Curtain Track
- Tourflex Cabling and Power Distribution
Services
- Overall systems & infrastructures planning, design and layout
- Specification, sourcing and supply of all equipment
- Complete installation of systems & infrastructures
- Supply and installation of bespoke cabling requirements
- Programming and commissioning
- On-site training
Designer
A.C. Special Projects
