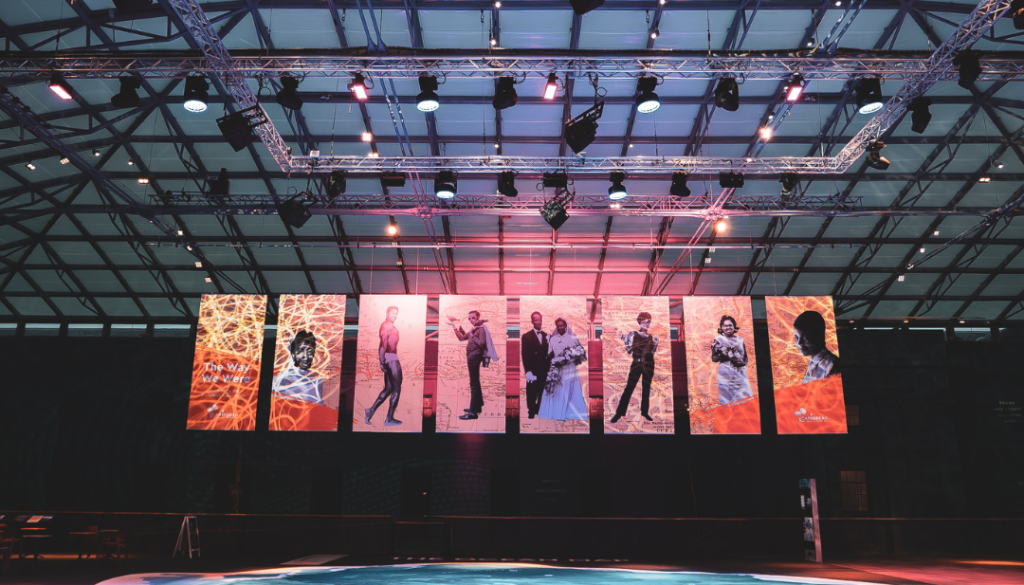

A.C. Special Projects Partners with GVAV to Illuminate Ocean Court at the National Maritime Museum

London, UK – October 2025 — A.C. Special Projects (ACSP), in partnership with leading AV integrator GVAV, has delivered a state-of-the-art lighting and rigging system for Ocean Court—the flagship event space at the National Maritime Museum in Greenwich. This upgrade brings advanced visual capabilities and technical flexibility to one of London’s most iconic venues.

The new system delivers a robust, high-specification solution that enhances the flexibility and impact of the Museum’s events, all while complementing the architectural grandeur of the glass-roofed atrium.

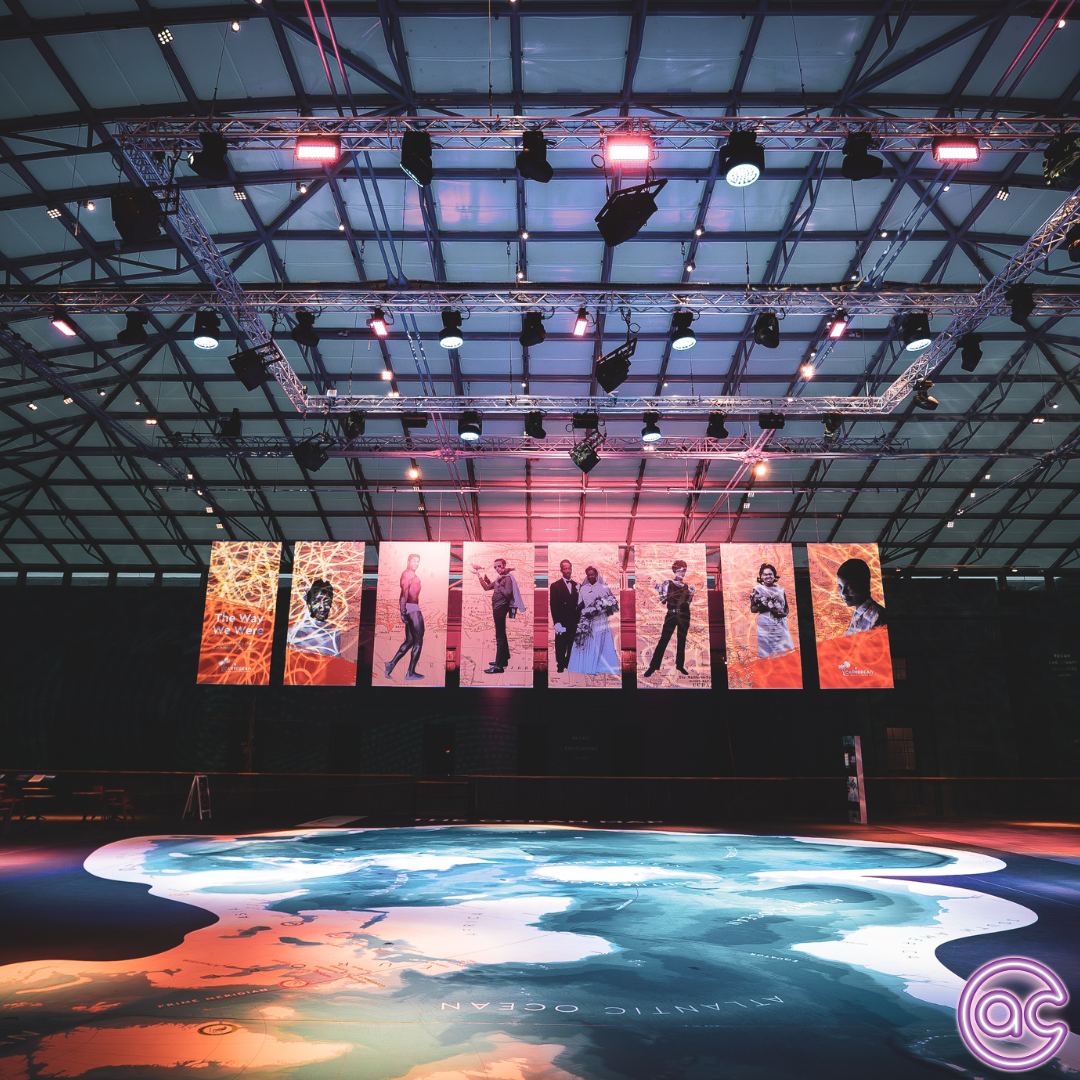

New Lighting and Rigging Systems for the National Maritime Museum’s Ocean Court

Comprehensive, Integrated System

Working closely with GVAV and project managers, ACSP designed and delivered a complete turnkey system comprising:

LED stage lighting fixtures
Lighting control console and distribution network

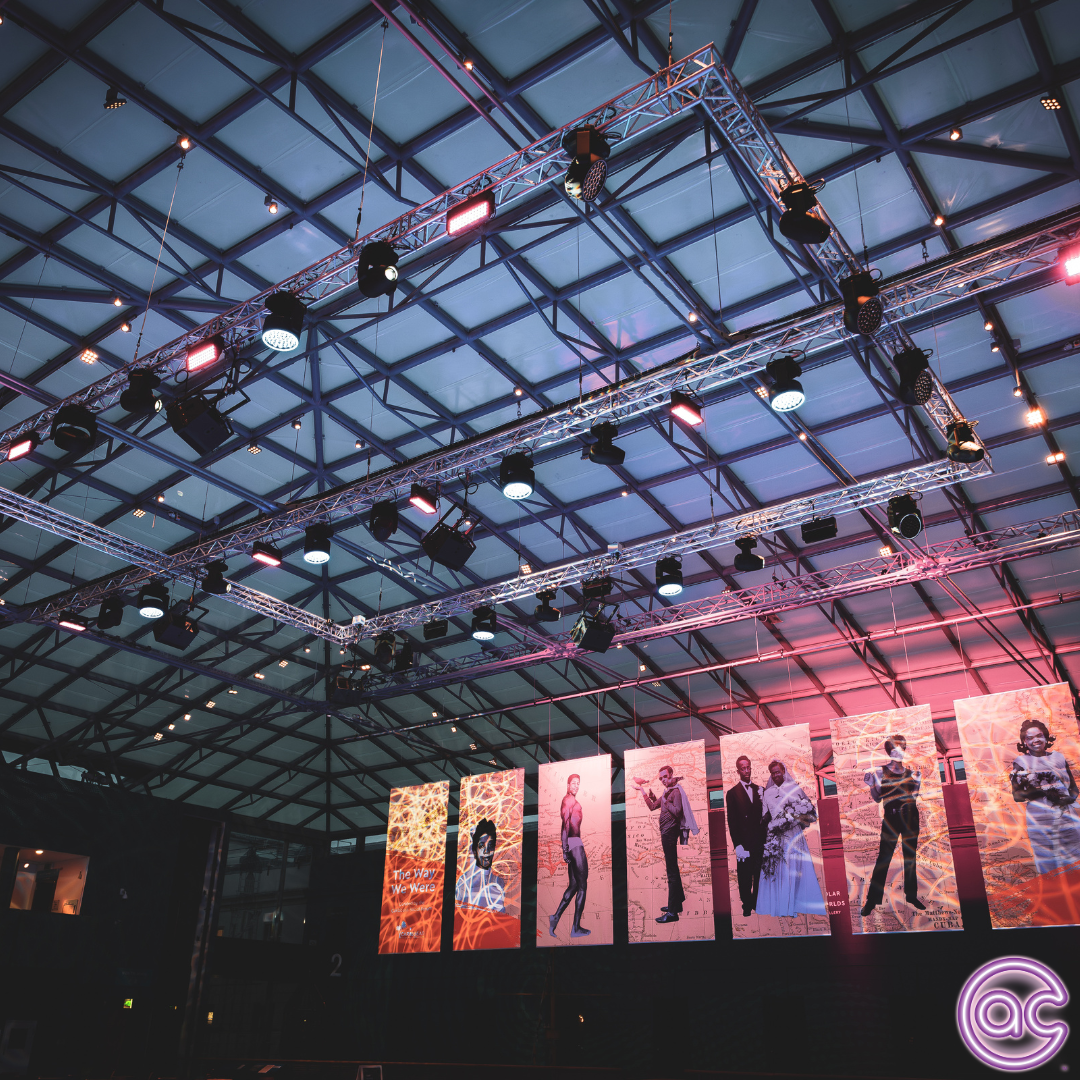

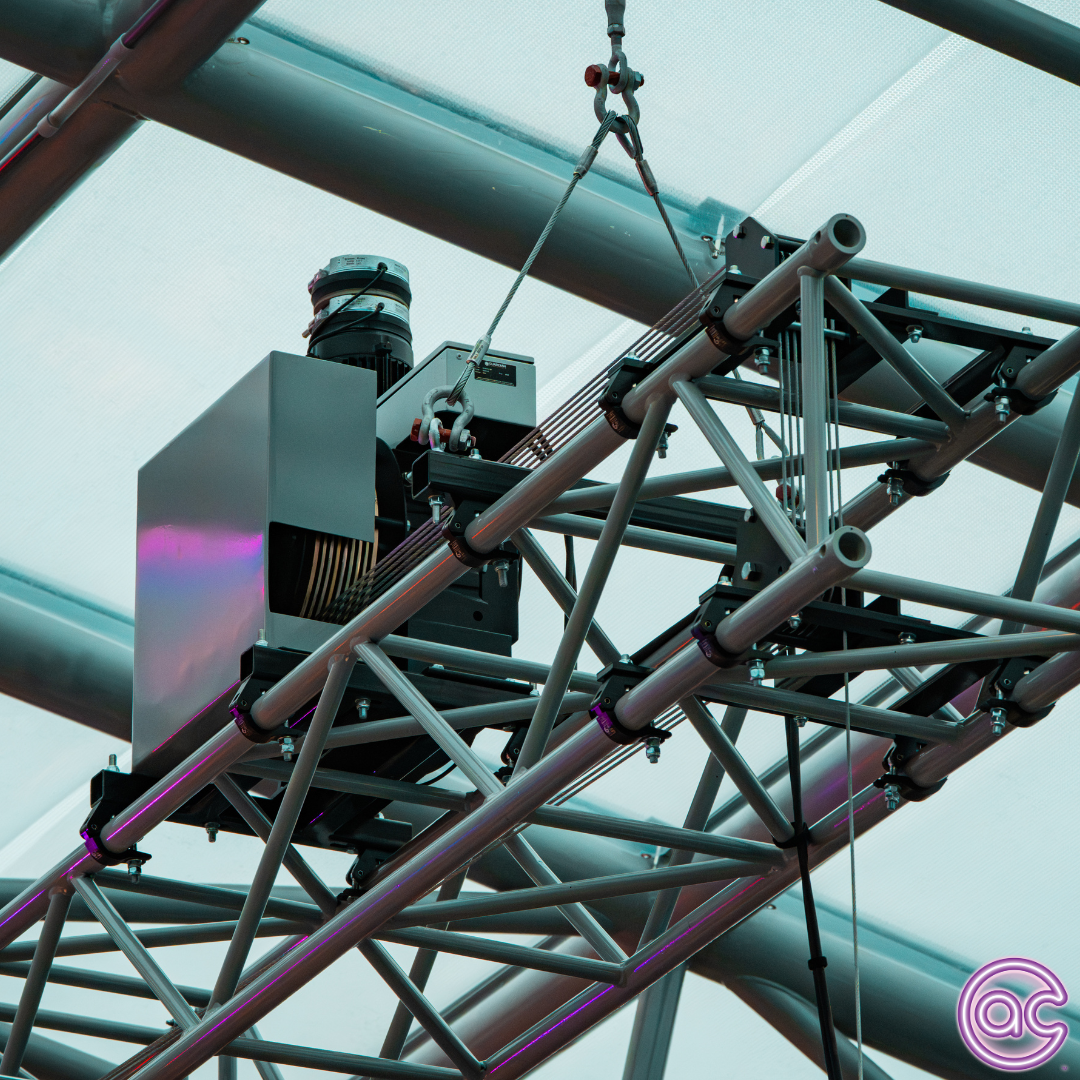

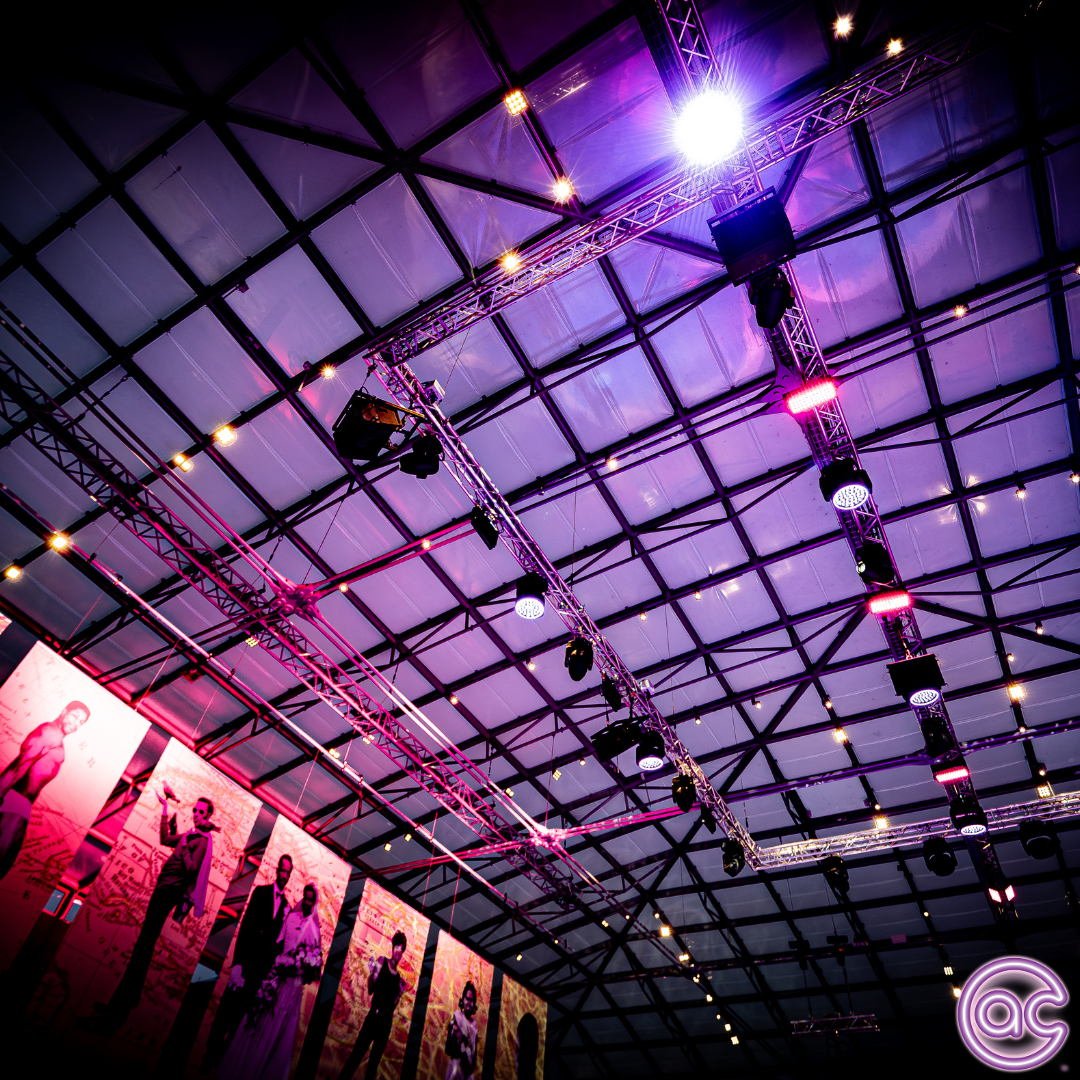

Truss grid and banner truss system with motorised control

The system was developed to provide reliable, user-friendly operation and seamless integration between control, power, and structural elements.

System Overview

Lighting control is managed by the Avolites Quartz Lighting Console, running Titan software, offering powerful performance in a compact footprint. The console outputs sACN lighting data, which is distributed by a Luminex GigaCore 30i network switch and converted to DMX by the Luminex LumiNode 2.

Power distribution is handled by the Vari-Lite RigSwitch+ Performance 24, with external relay control from the Quartz console via sACN for efficient, flexible operation.

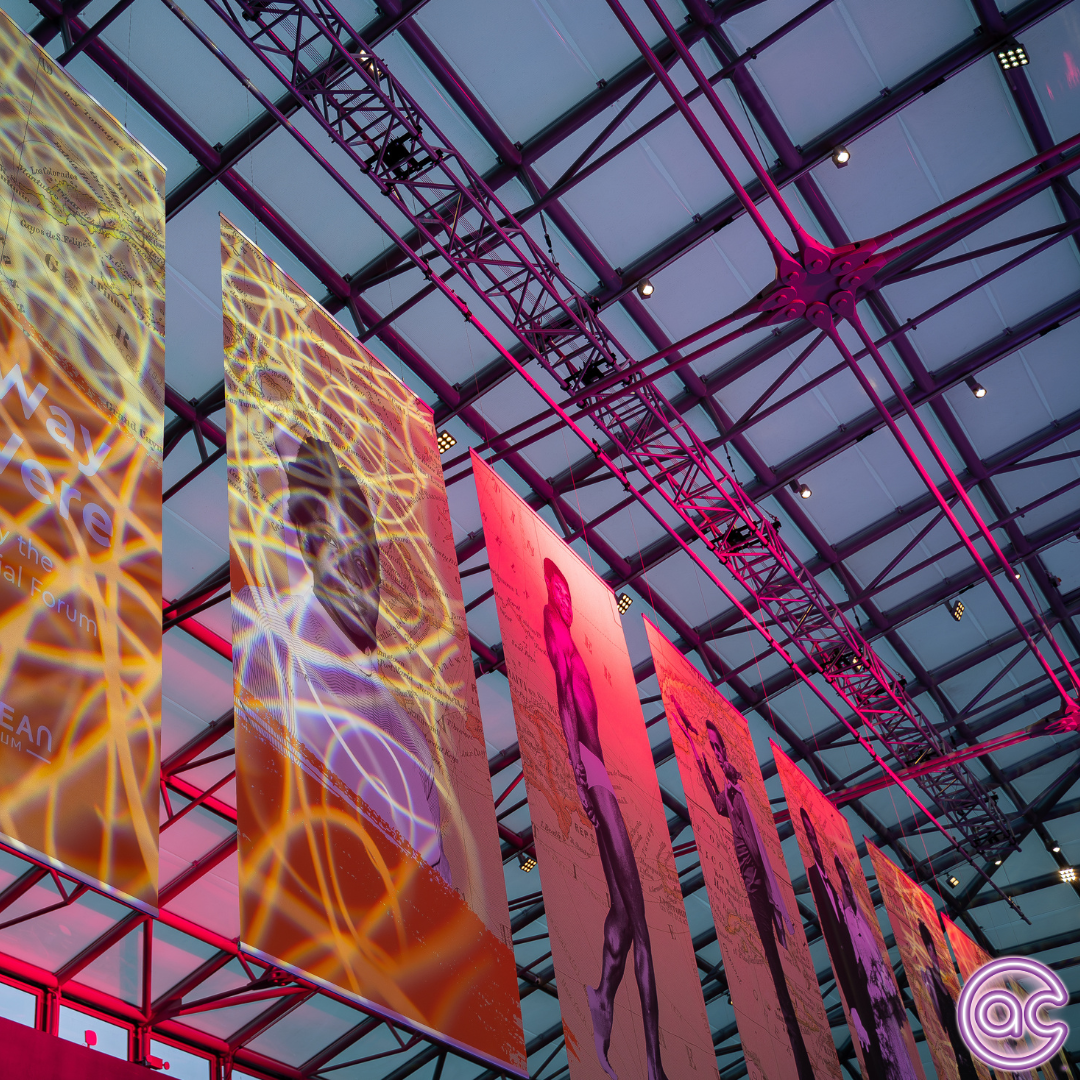

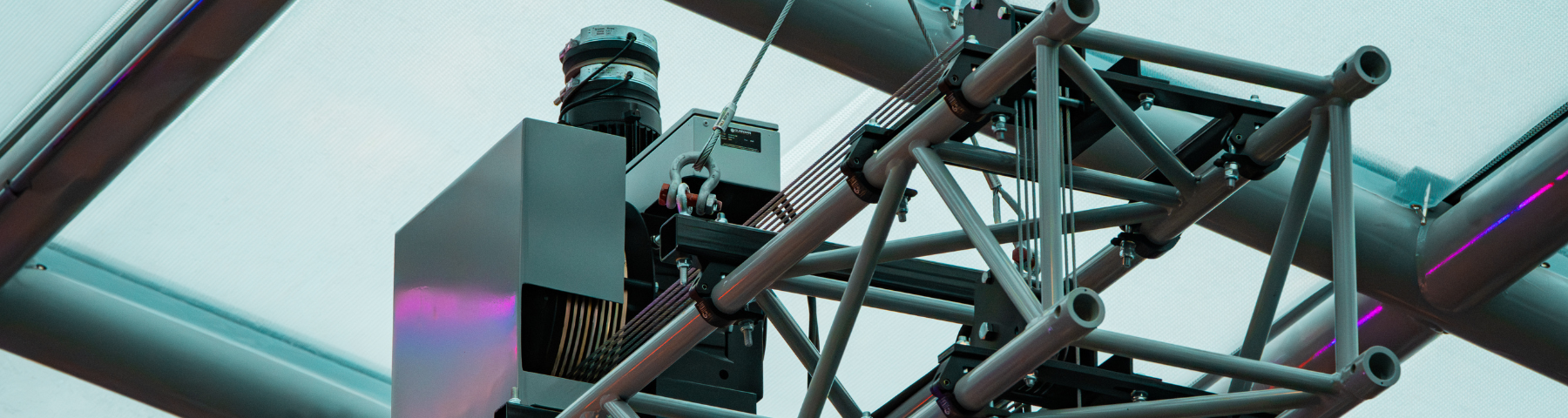

The rigging structure features various sizes of SIXTY82 TPM29S truss, providing a robust and adaptable grid structure, along with custom Tourflex Cabling for DMX, Ethercon, and power distribution.

Lighting Fixtures

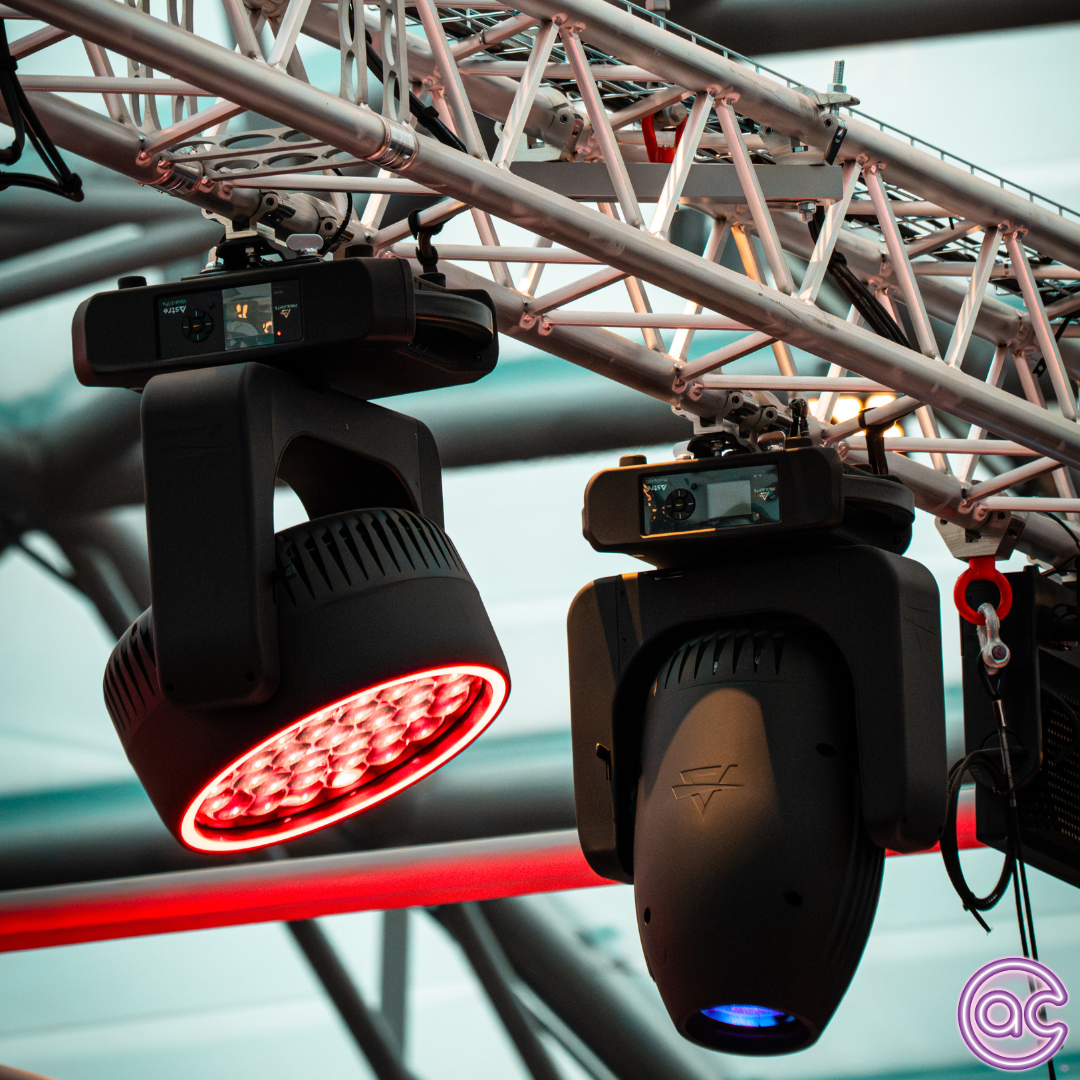

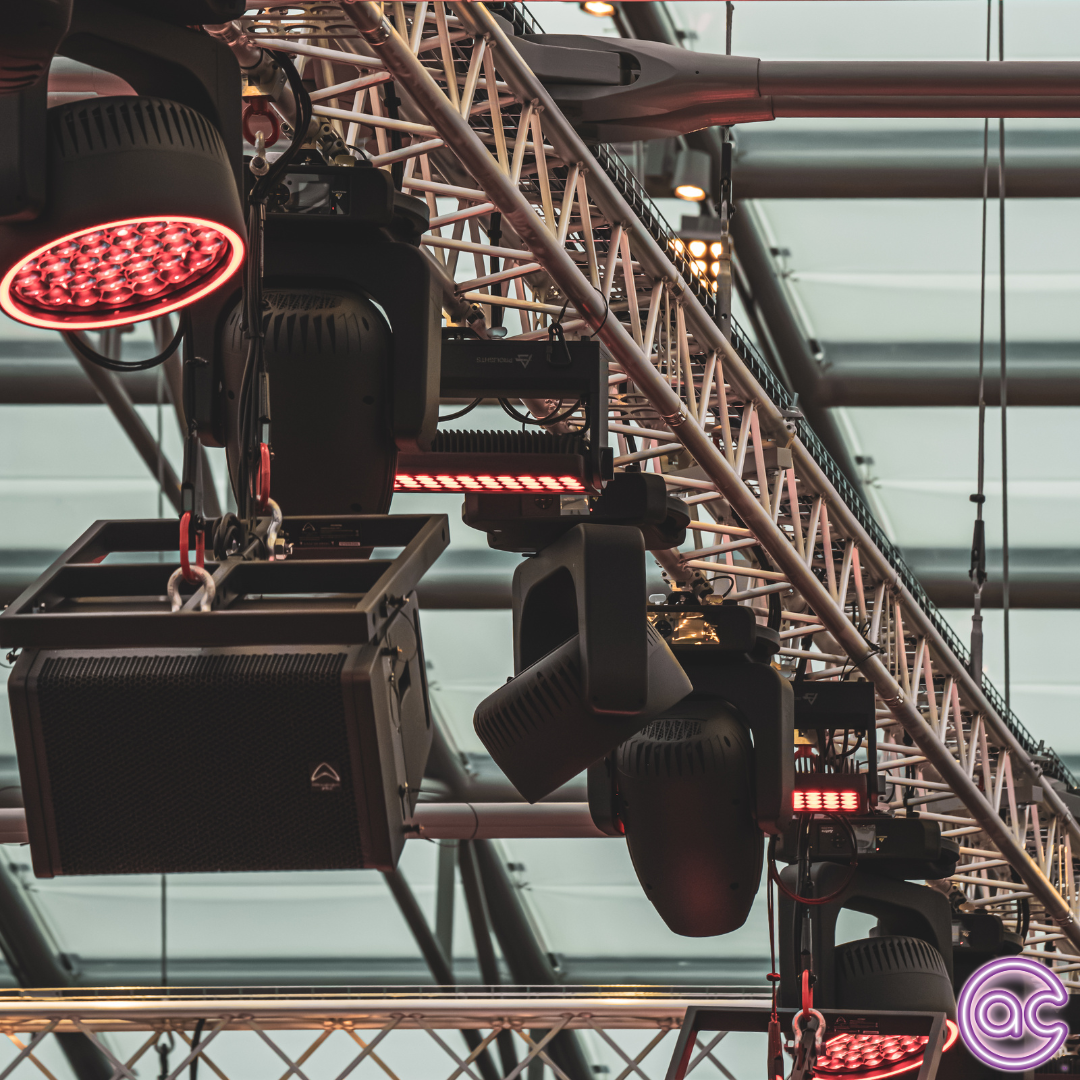

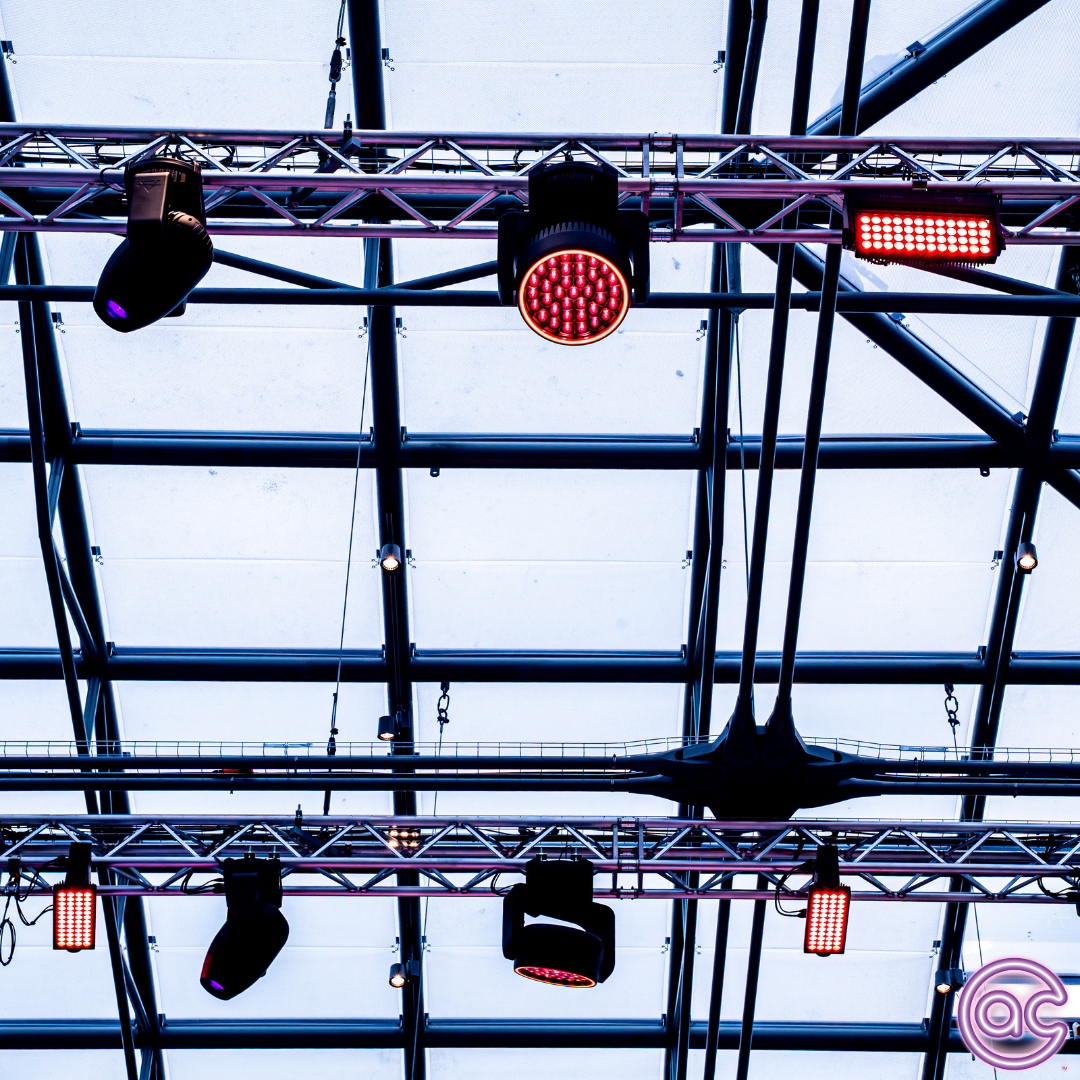

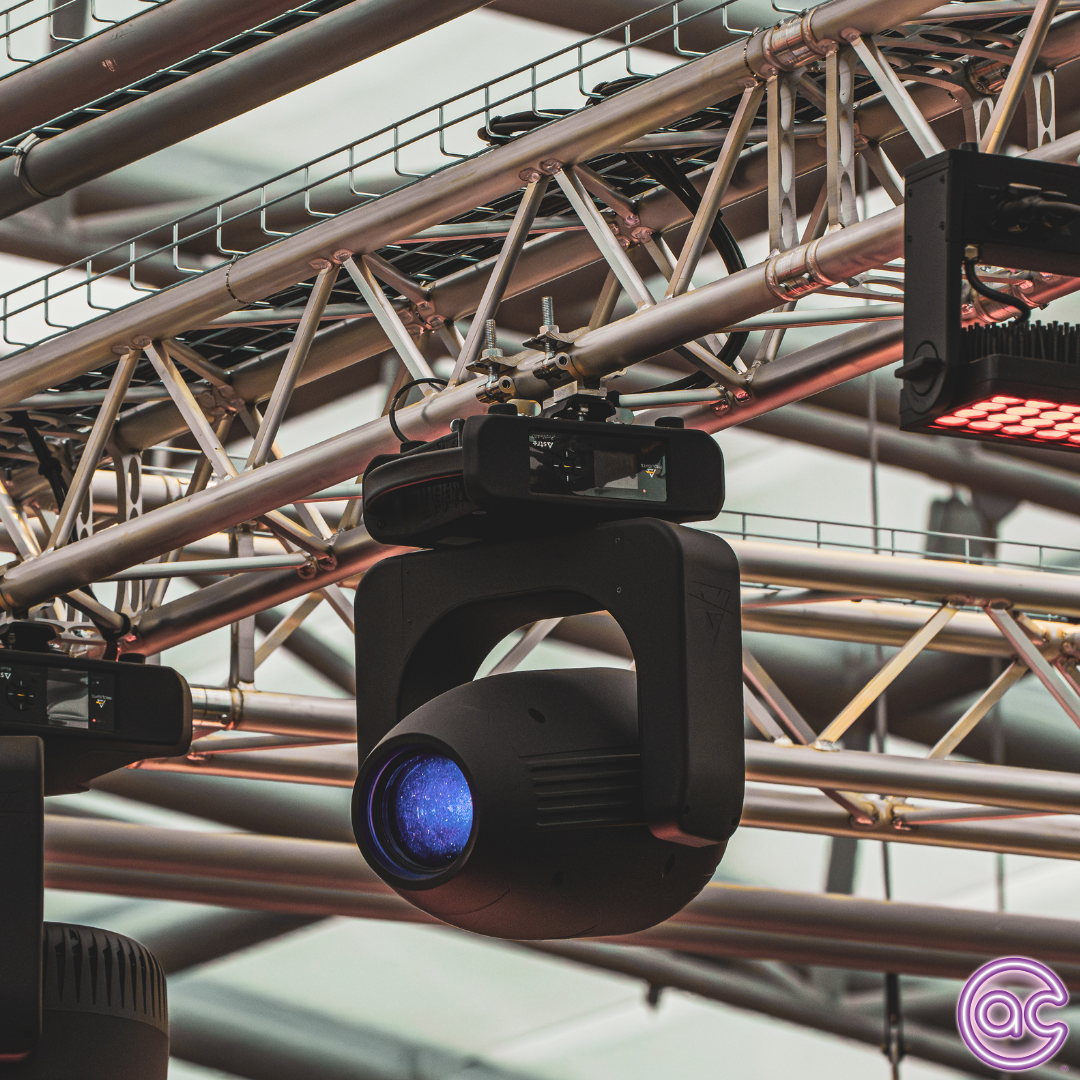

The installation features a range of PROLIGHTS LED fixtures, selected for their output quality, efficiency, and versatility. These include:

Astra Profile400 x 12
Astra Wash37Pix x 12
Solar48Q x 12

Together, these lighting fixtures provide a balance of performance, colour precision, and energy efficiency to suit a wide range of event applications.

Partnership with GVAV

For this project, A.C. Special Projects partnered with clients GVAV, a leading UK audio-visual solutions provider with over 45 years’ experience in delivering audio-visual technology across museums, exhibition spaces, and institutions.

With their design support, GVAV offered technical consultancy and ensured that AV integration for the lighting and rigging systems aligned with best practices in control, power distribution, and long-term maintainability.

A Complete, Integrated Solution

The combination of PROLIGHTS, SIXTY82, Avolites, Luminex, and Vari-Lite products offers a fully integrated and future-ready system for the National Maritime Museum’s busy events programme.

Professional photographs of the completed system are captured by AC-SP’s very own Matt Stridgen. He has this to say on the project:

“It was a real pleasure to work with GVAV and the National Maritime Museum team on this project. Ocean Court is such a distinctive space, and the brief called for a lighting and rigging system that could combine flexibility, performance, and reliability within its striking architectural setting.
The goal was to deliver a fully integrated, user-friendly solution that could support a wide variety of events — from corporate functions and private dinners to dynamic live performances — while remaining sympathetic to the aesthetics of the venue.
By combining trusted technologies from PROLIGHTS, SIXTY82, Avolites, Luminex, and Vari-Lite, we, together with GVAV, created a system that gives the museum’s technical team complete creative control, with the efficiency and scalability to meet future demands.
We’re incredibly proud of the result and delighted to see Ocean Court brought to life with such a flexible and visually impressive system.”
